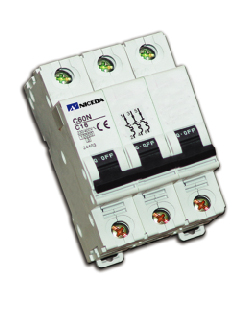

NDC60N Mini Circuit Breaker
Application The products of NDC60N belong to the advanced level of the nineties in the international instead of the older generation of DZ47 (C45N). They have protective functions for short circuit and are used in lighting distribution system in industry, commerce and dwelling, and protection fractional electric motors. And they also have many merits of high protective grade (up to IP20), high breaking capacity, good reliability of sensitive action, convenient multiple assorting, long using-life etc. They are mainly adapted to the circuit of AC50Hz, 230V in single pole, 400V in double, three, four poles for protecting overloading and shortage. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.
TECHNICAL SPECIFICATION
Poles 1P,2P,3P,4P Rated Volfage(V) 230V/400V Rated Current(A) 1,2,3,4,6,10,16,20,25,32,40,50,63A Characteristic Curve IEC60898  B.C.D Rated Capacity of Short-Circuit Breaking 6KA Mechanical and Electrical life >6000 operations Protective grade IP20 Tropicallration Tratment 2 (Rh95% ot 55¡æ)
